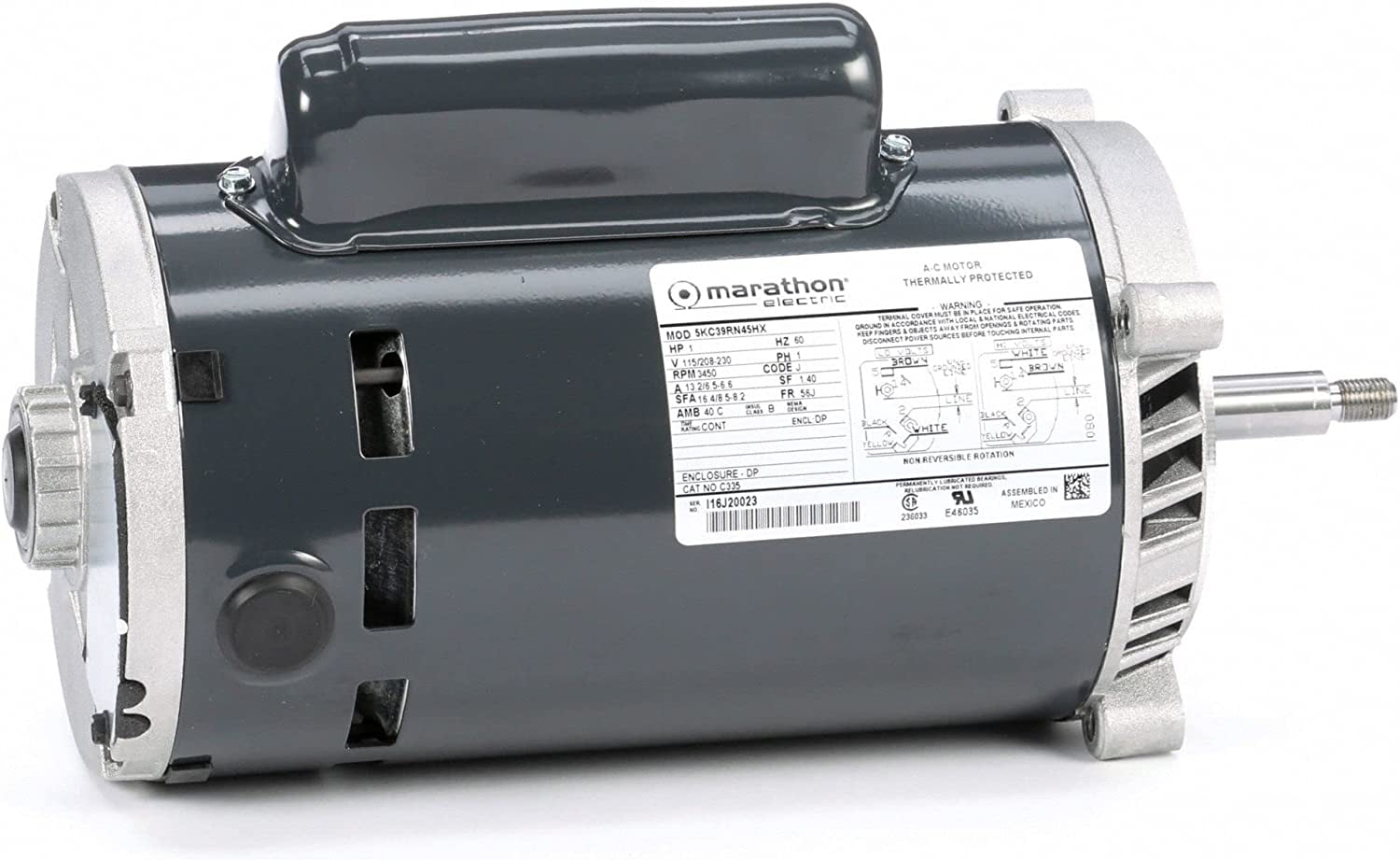

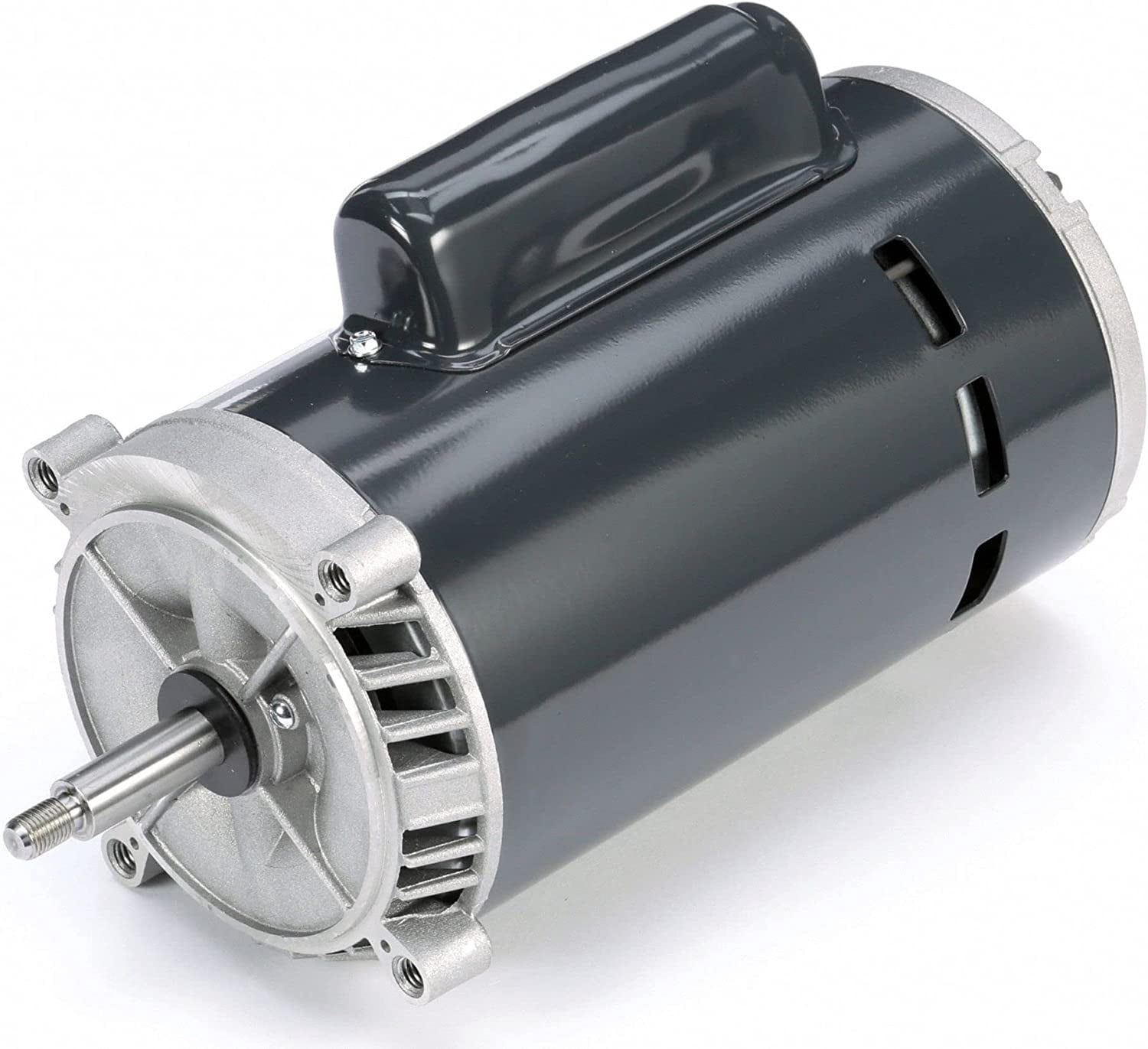

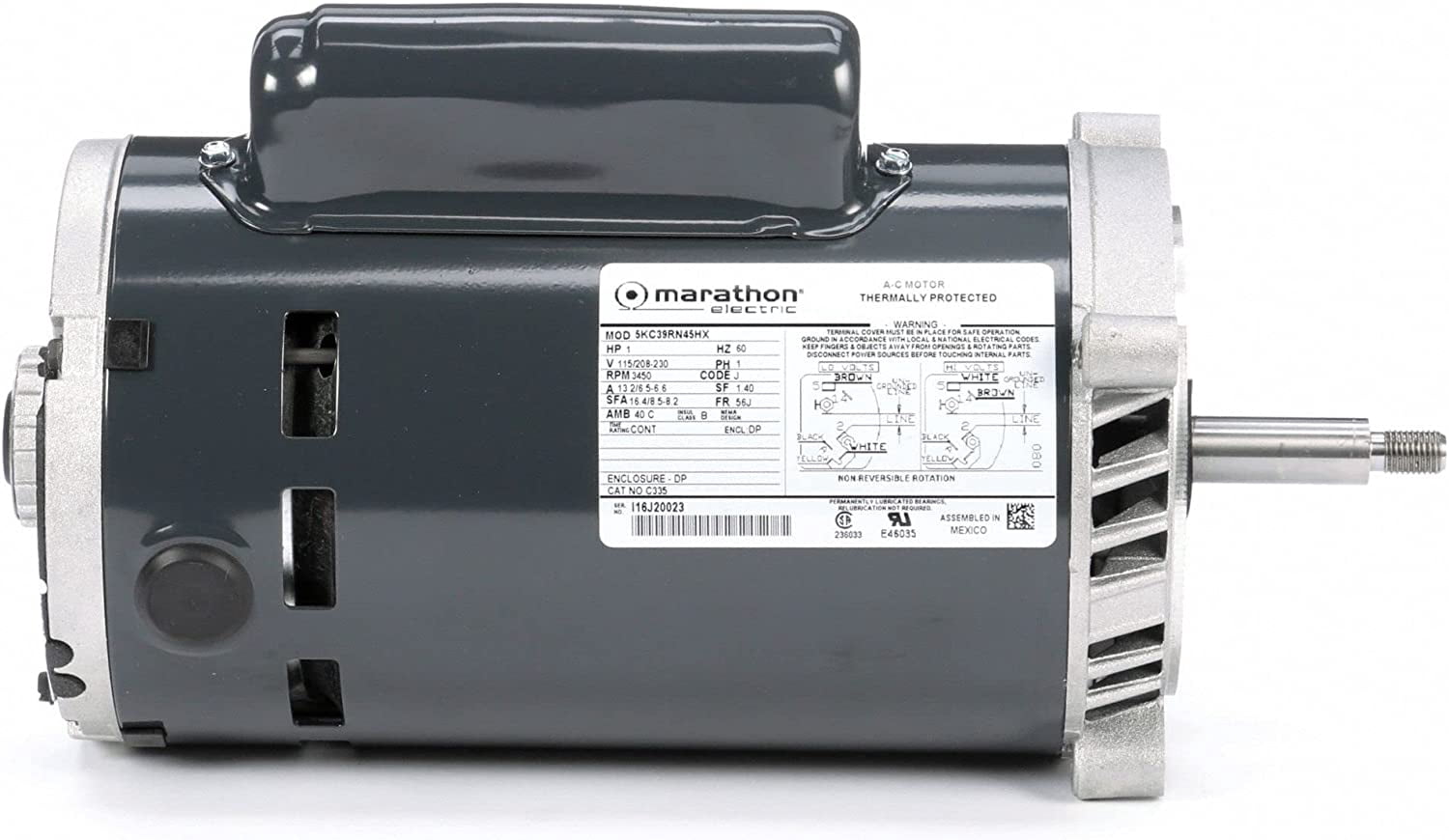

Mtr,Cap St,1 HP,3450,115/230,56J,ODP 5KC39RN45X
Product details
| Management number | 230758886 | Release Date | 2026/06/18 | List Price | US$148.06 | Model Number | 230758886 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Jet Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 2 15/16 in, CC Number CC003A, Conduit Box Location Exterior, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 13.2/6.6-6.5, HP 1, Includes Shaft Slinger, Ins. Class B, Length Less Shaft 10 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
- Standards CSA Certified, UL Recognized
- Includes Shaft Slinger
- Height 7.500
- Length 15.630
- Phase Single
- Voltage 115/208-230V AC
- Width 9.880
| Brand | Leeson |
|---|---|
| Has nrtl listing certification | N |
| Has written warranty | No |
| Accessories | Shaft Slinger |
| Dimensions | 15.63 x 9.88 x 7.50 in |
| Weight | 22 lb |
| Model | 5KC39RN45X |
